Online Ion Analyzer For Water Treatment Plant

Short Description:

★ Model No: pXG-2085Pro

★ Protocol: Modbus RTU RS485 or 4-20mA

★ Measure Parameters: F-,Cl-,Mg2+,Ca2+,NO3-,NH+

★ Application: Wastewater treatment plant, chemical & semiconductor industry

★ Features: IP65 protection grade, 3 Relays for control








  • facebook
  • linkedin
  • sns02
  • sns04

Product Detail

User Manual

Introduction

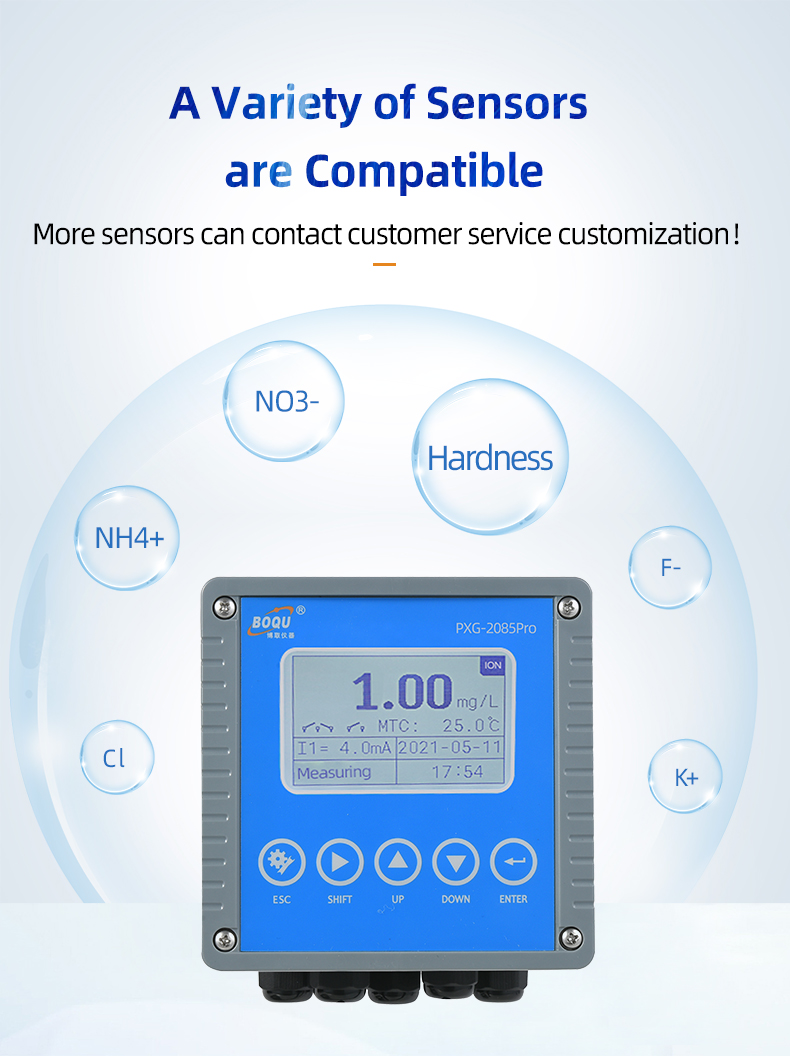

pXG-2085Pro Industrial online Ions analyzer is new latest micro-computer based high-end instrument.

It is characterized by three languages in one,suitable for F-,Cl-,Mg2+,Ca2+,NO3-,NH+ (Fluoride ion,Chloride ion,Chloride,Potassium ion,Nitrate ion,

Ammonium ion, Calcium ion,Hardness etc).

The ion instrument has a user-friendly interface, easy use, long working life, data logging function.it’s widely used for power plant,drinking water,industrial waste water etc

PFG-3085 Online Water Hardness Meter1

Main Features

1) The ion instrument are used in industrial measuring of the temperature and ion, such as Waste water treatment, environmental monitoring, electroplate factory, etc.

2) It can be panel, wall or pipe mounted.

3) The ion meter provides two current outputs. The maximum load is 500 Ohm.

4) It provides 3 relays. It can pass though a maximum of 5 Amps at 250 VAC or 5 Amps at 30VDC

5) It has data logger function and record 500 000 times data.

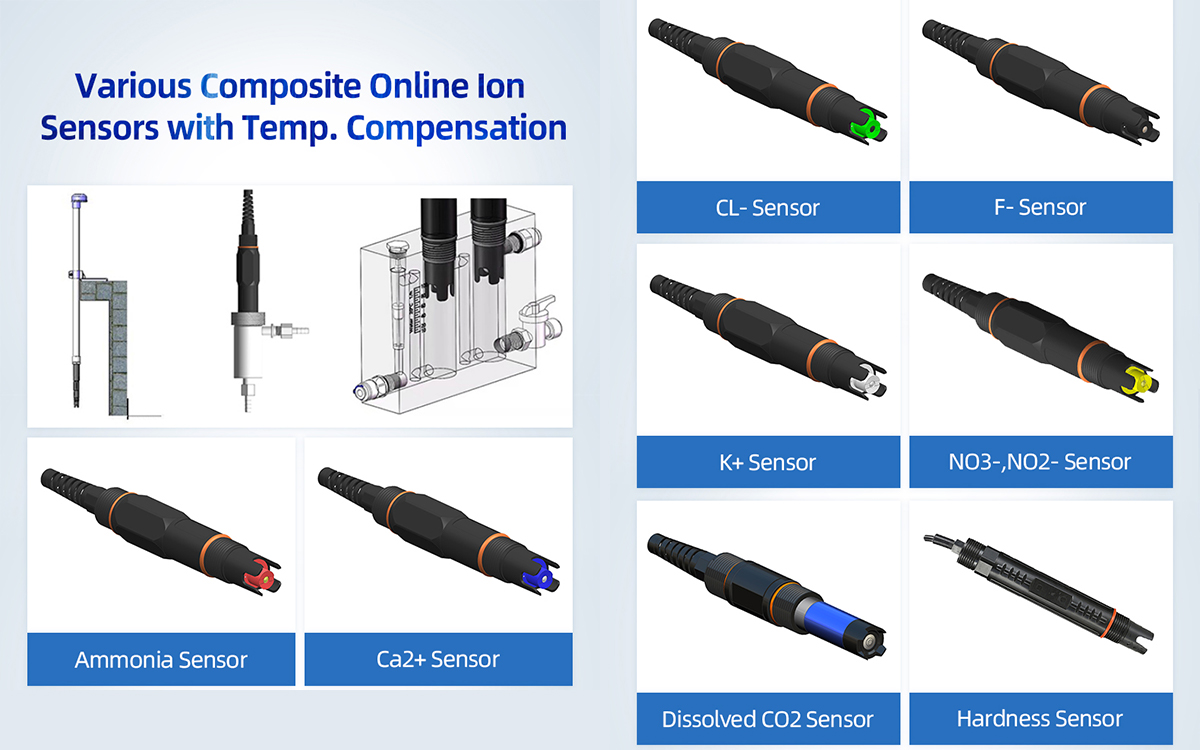

6) it's suitable for F-,Cl-,Mg2+,Ca2+,NO3-,NH+ etc and it’s automatic to change unit based on different ion sensor.

Technical Parameters

Functions ION(F-,Cl-,Mg2+,Ca2+,NO3-,NH+ etc )
Measuring range 0-20mg/L, 0.00 – 23000 ppm
Resolution 0.01(<1ppm), 0.1 (<10ppm), 1(others)
Accuracy ±0.01ppm,±0.1ppm,±1ppm
mV input range 0.00-1000.00mV
Temp. compensation Pt 1000/NTC10K
Temp. range -10.0 to +130.0℃
Temp. compensation range -10.0 to +130.0℃
Temp. resolution 0.1℃
Temp. accuracy ±0.2℃
Ambient temperature range 0 to +70℃
Storage temp. -20 to +70℃
Input impedance >1012Ω

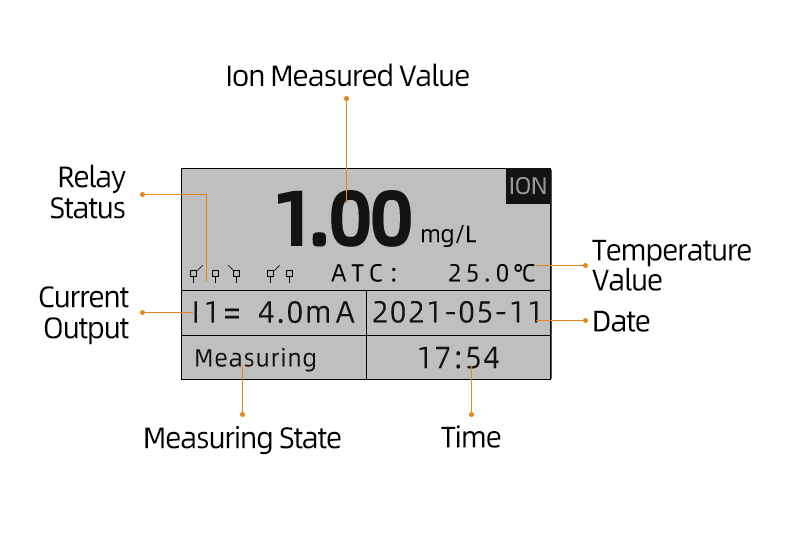

Display Back light, dot matrix
ION current output1 Isolated, 4 to 20mA output , max. load 500Ω
Temp. current output 2 Isolated, 4 to 20mA output , max. load 500Ω
Current output accuracy ±0.05 mA
RS485 Mod bus RTU protocol
Baud rate 9600/19200/38400
Maximum relay contactscapacity 5A/250VAC,5A/30VDC
Cleaning setting ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours
One multi function relay clean/period alarm/error alarm
Relay delay 0-120 seconds
Data logging capacity 500,000
Language selection English/traditional Chinese/simplified Chinese
Waterproof grade IP65
Power supply From 90 to 260 VAC, power consumption < 5 watts
Installation panel/wall/pipe installation
